Portable Compressors

  • Progressive volume flow regulation - engine speed and air intake regulation are automatically adapted to compressed air requirement
  • Air end with spin-on oil filter cartridge - for quick and easy maintenance
  • Transparent plastic fuel tank - allows direct visual level indication and quick contamination checks
  • Central lifting eye - for easy handling by crane
  • Operational reliability - designed for – 10 to + 50° C ambient temperature
  • Compressor oil temperature regulating valve - ensures safe operation of compressor at low ambient temperatures or extreme partial load
  • Ordering Details
    Part # Description
    C14-C270 Portable Compressors
  • Technical Details

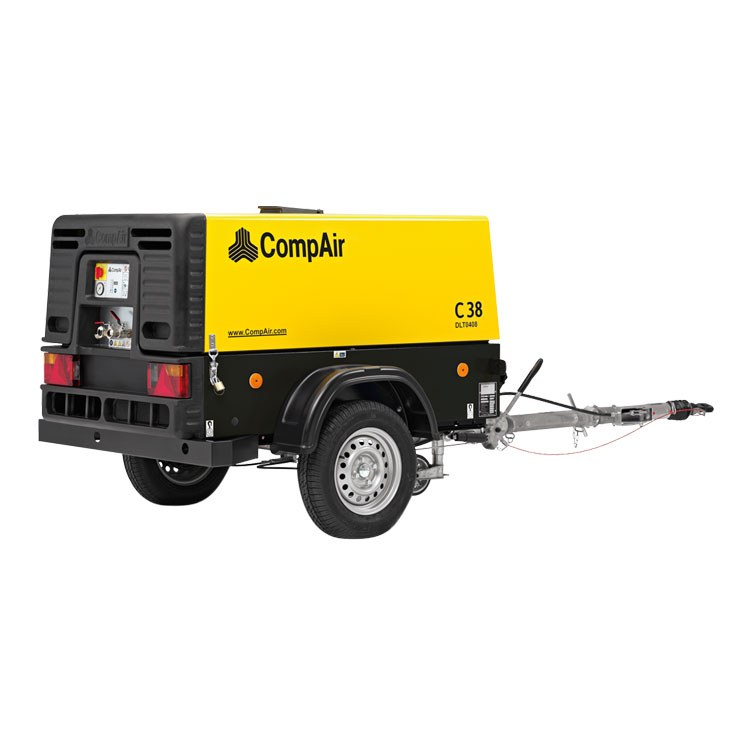

    Specifications - C38
    Volume flow (Optional 9 or 15 kVA Generator) 3.8 m³ / min
    Operating pressure 10 bar
    Compressed air outlet 2 x 3/4"
    Installed engine power 33.5kW
    Engine off load speed 1700 1/min
    Engine full load speed 2800 1/min
    Fuel tank capacity 60 Litres
    Weight - adjustable towbar braked 810 Kg
    Weight - adjustable towbar unbraked 745 Kg
    Weight - straight towbar braked 775 Kg
    Weight - straight towbar unbraked 725 Kg
    Weight - Base mount 685 Kg
    Weight - Skid mount 720 Kg
    Length - adjustable towbar braked 3241 – 3452mm
    Length - straight towbar braked 3065mm
    Width 1490mm
    Height 1327mm
    Length of canopy 1775mm
    Power sound level 98 dB(A) LWA
    Pressure sound level 69 dB(A) LPA
