Part #	Description

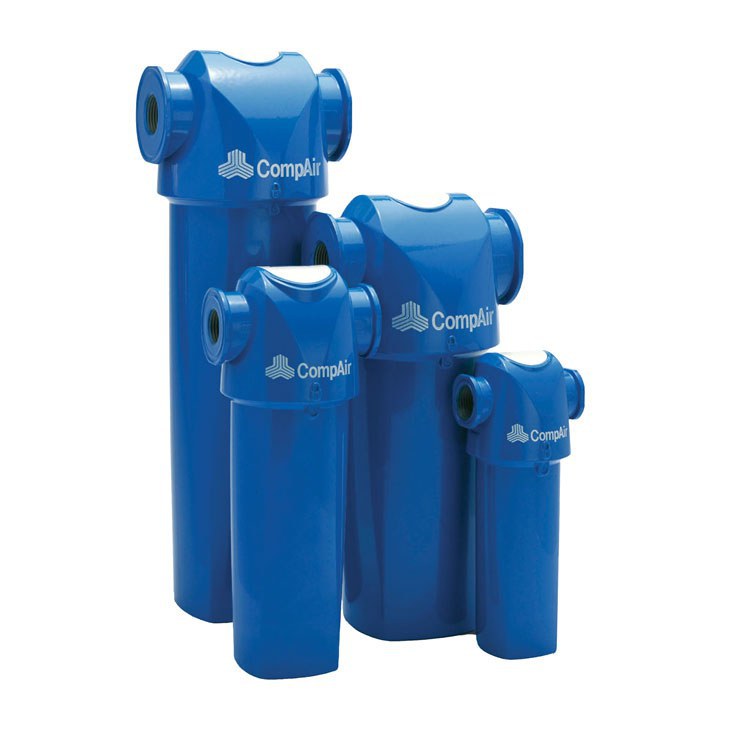

CA-AF	CompAir Compressed Air Filters

Specifications	CF0006N 1/2"	CF0012N 1/2"	CF0018N 1/2"
Port Size	1/2"	1/2"	1/2"
Flow Rate (7 bar g/100 psi g)	0.6 m³ / min - 21 SCFM	1.2 m³ / min - 42 SCFM	1.8 m³ / min - 64 SCFM
Length	76mm	97.5mm	97.5mm
Height	181.5mm	235mm	235mm
Weight	0.4 Kg	1 Kg	1 Kg
Element Type	CE0006N + Grade	CE0012N + Grade	CE0018N + Grade
Number of Elements	1	1	1

• Comp Air 2016 Data Sheet (185 KB) pdf
• Comp Air Filters Brochure (887 KB) pdf
