Part #	Description

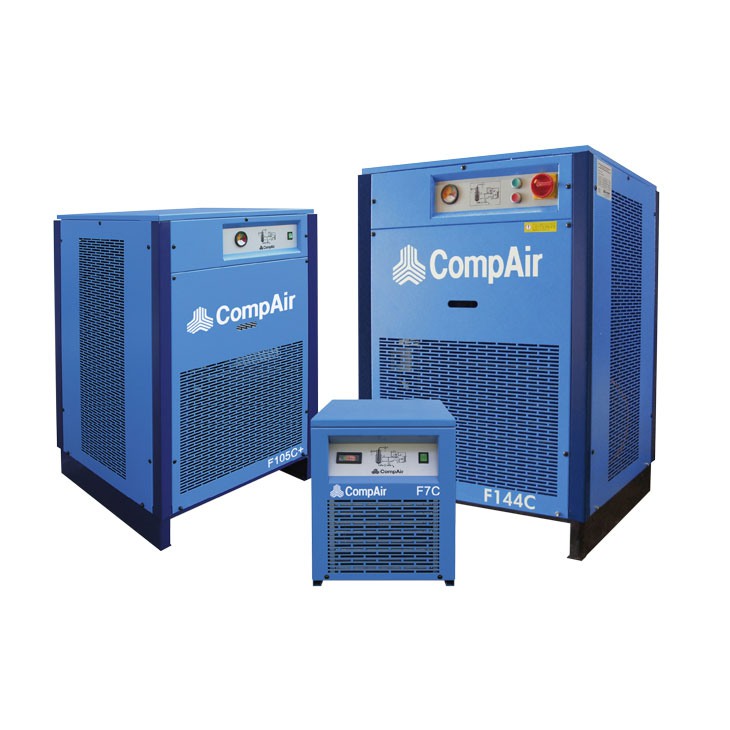

CA-RAD	Refrigerant Air Dryers

Specifications - 1 Phase Connection	F2C	F3C	F5C
Volume flow - m³/min	0.183	0.264	0.48
Total power 50Hz kW	0.25	0.25	0.25
Total power 60Hz kW	0.28	0.28	0.28
Pressure drop at rated load - mbar	10	10	20
Compressed air connection RP	1/2"	1/2"	1/2"
Length - mm	500	500	500
Width - mm	360	360	360
Height - mm	460	460	460
Weight - in Box	30	30	32
Electrical connection - V/Ph/Hz	230 / 1 / 50 & 230 / 1 / 60	230 / 1 / 50 & 230 / 1 / 60	230 / 1 / 50 & 230 / 1 / 60

Specifications - 3 Phase Connection	F72CT+	F84CT+	F105CT+
Volume flow - m³/min	7.20	8.40	10.5
Total power 50Hz kW	1.12	1.42	1.46
Total power 60Hz kW	1.39	1.73	1.77
Pressure drop at rated load - mbar	260	330	180
Compressed air connection RP	1-1/2"	2"	2"
Length - mm	570	715	715
Width - mm	690	765	765
Height - mm	985	1235	1235
Weight - in Box	130	217	217
Electrical connection - V/Ph/Hz	400 / 3 / 50 & 440 / 3 / 60	400 / 3 / 50 & 440 / 3 / 60	400 / 3 / 50 & 440 / 3 / 60
