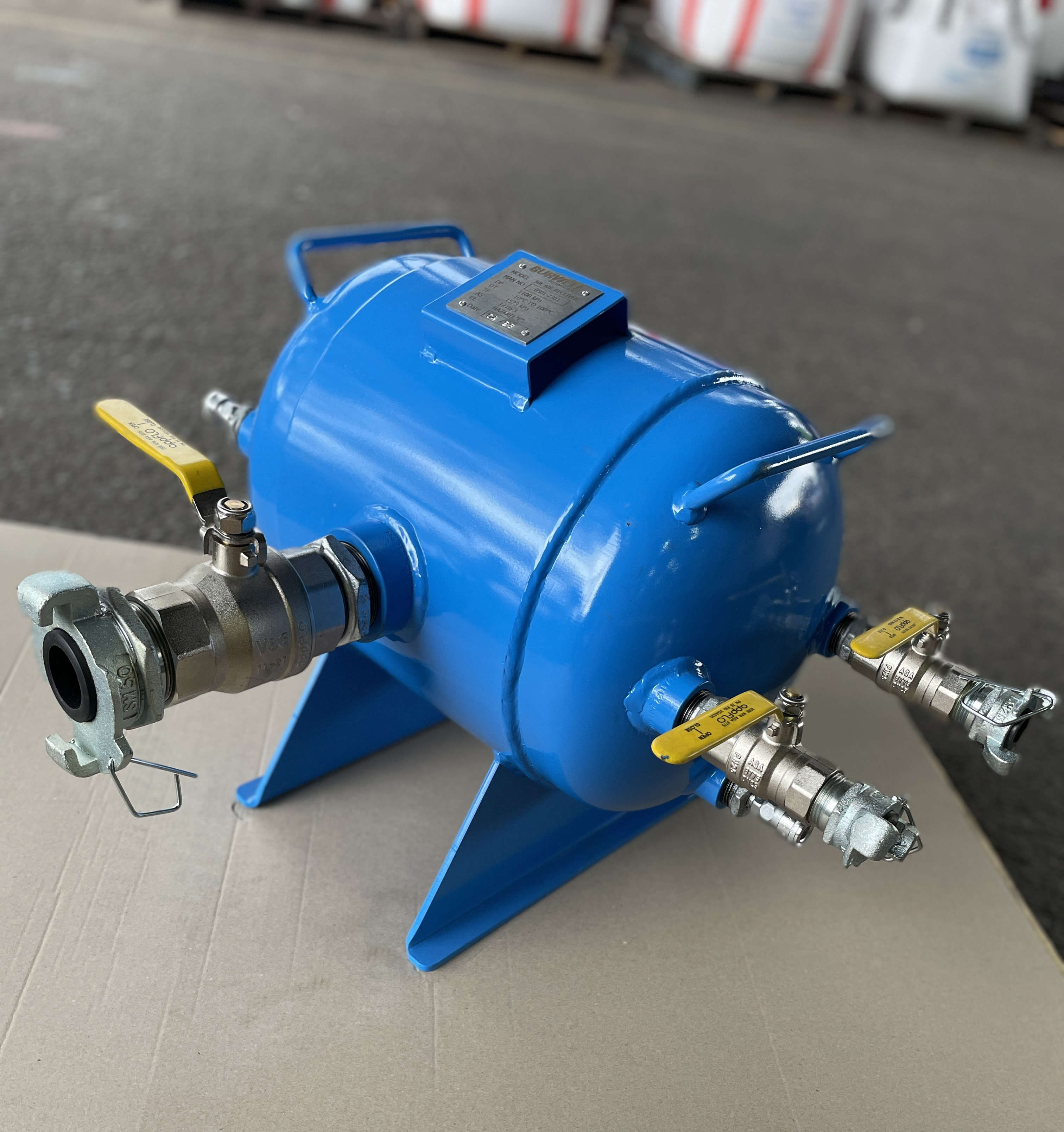

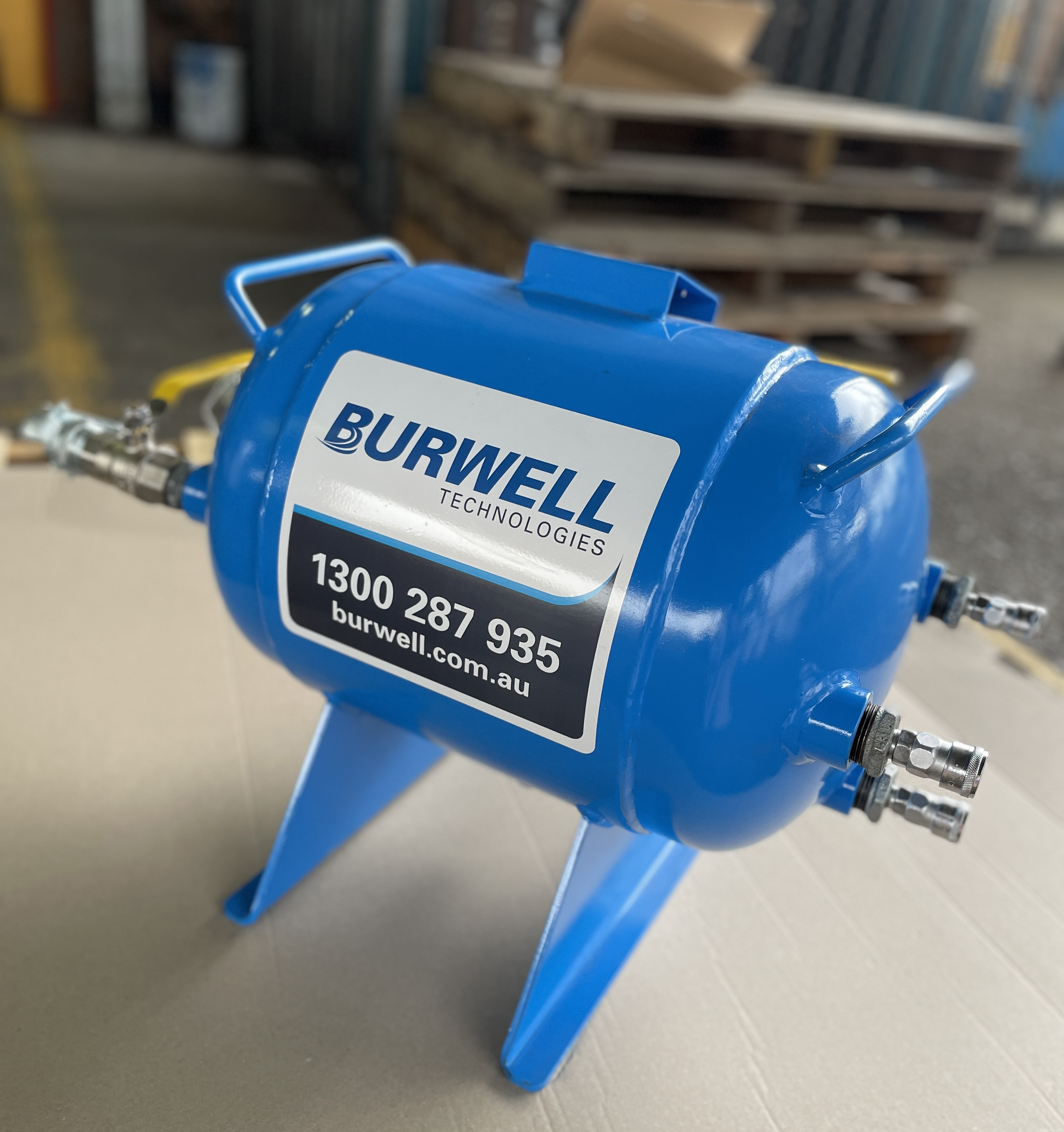

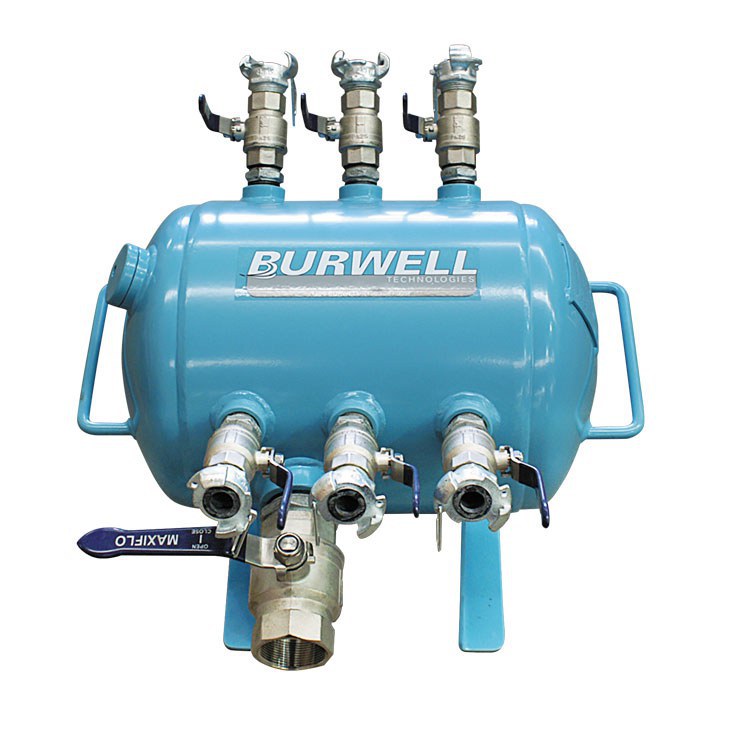

30L Multi Outlet Air Manifold

Burwell's "Air Pig" - designed for applications where a number of tools are to be worked off a single air supply.

AUSTRALIAN MADE
Designed and made in Australia to AS1210 using Australian Plate Steel. MDR Supplied.

BUILT TOUGH
Rated to 160ps (1100kPa) to meet all situations.

UNFITTED

Various combinations available, customisable to customer's needs including pressure relief valve.


*SPEAK TO YOUR LOCAL BURWELL REPRESENTATIVE ABOUT FITTED OPTIONS

  • Ordering Details
    Part # Description
    0501-2303 Burwell 30L Air Receiver (without fittings)
  • Technical Details
    Specifications
    1 x 2" Inlet Ports
    6 x 1" Outlet Ports
    1 x 1/4" Drain Socket
    Pressure Rated: 160 psi (1100 kPa)
    Weight: 26kg (bare)
    Length: 480mm
    Width: 400mm
    Height: 450mm
