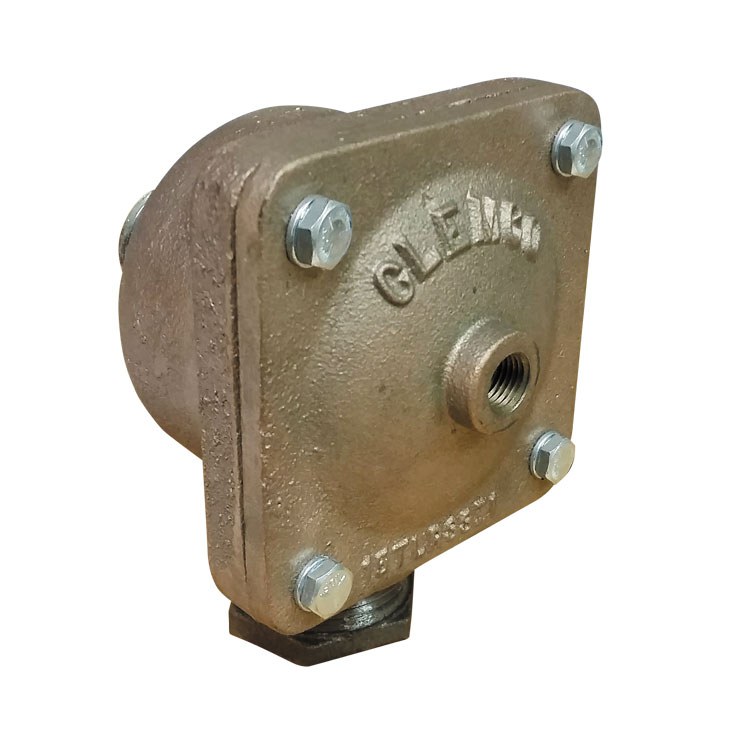

1" Diaphragm Outlet
The Clemco 1” Diaphragm Outlet is a complete diaphragm outlet valve designed for use with the TLR-100 and TLR-300 Remote Control Systems. This product includes several components such as a 1-inch diaphragm outlet valve, a nipple, a diaphragm, a washer, a cap screw, a cap, a body, and a bushing.
Features
- Complete diaphragm outlet valve (1 inch) for the TLR-100 and TLR-300 Remote Control Systems
| Specification | Details |
|---|---|
| Clemco 1 Diaphragm Outlet Valve Breakdown Sheet (pdf) 107 KB | Download |
| Specification | Details |
|---|---|
| 0405-3371 | 1″ Diaphragm Outlet Valve, Complete |
| 0305-4614 | Nipple, 1″ x close |
| 0405-06149 | Diaphragm |
| 0405-03117 | Washer, 1/4″ lock |
| 0405-03053 | Cap screw, 1/4-NC x 1″ hh |
| 0405-03393 | Cap, diaphragm outlet |
| 0405-06135 | Body, diaphragm outlet |
| 3006-0105 | Bushing, 1-1/4″ x 3/4″ |
