800 Breeze-Pro Air Dryer
The 800 Breeze-Pro Air Dryer is a versatile and robust air dryer designed for use with Double Outlet or 2 x Single Outlet Blast Machines. It features a desiccant-free design utilizing an Australian Made Coalescing Stainless Steel Filter, ensuring efficient moisture removal from blasting air. This air dryer is capable of removing up to 90% of moisture under conditions of approximately 35 degrees Celsius ambient temperature and 100% relative humidity, with a maximum working pressure of 200 psi.
Constructed in Australia to AS1210 standards using Australian Plate Steel, the 800 Breeze-Pro Air Dryer is built to withstand harsh climates and rugged terrains. It is rated to 175 psi and includes features such as a pressure relief valve with certification, an air regulator, a moisture trap, a lubricator, and an inline water separator. The unit is designed for ease of handling with forklift slots and lifting lugs, and it operates quietly to minimize sound levels.
Features
- Pressure Relief Valve with Certificate
- Air Regulator
- Moisture Trap
- Lubricator
- 2 x 2" Ball Valve
- Inline Water Separator
- MDR & Australian Design Registration Certification
| Specification | Details |
|---|---|
| Airflow: 800cfm @175psi | |
| Filtration Type: 316 ss Coalescing Filter | |
| Weight: 550kg | |
| Length: 1400mm | |
| Width: 1070mm | |
| Height: 2180mm | |
| Outlet Size: 2 x 2″ Ball Valve |
| Pressure Relief Valve with Certificate |
| Air Regulator |
| Moisture Trap |
| Lubricator |
| 2 x 2″ Ball Valve |
| Inline Water Separator |
| MDR & Australian Design Registration Certification |
| Specification | Details |
|---|---|
| 1404-0800 | Burwell 800 Breeze-Pro Air Dryer |
| File Name | URL |
|---|---|

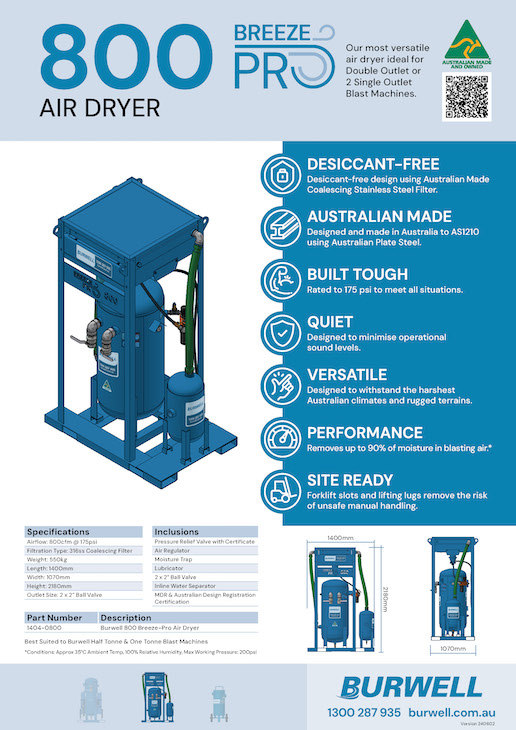

| 800 Breeze Pro Flyer 240602 WEB (929 KB) pdf | Download |
