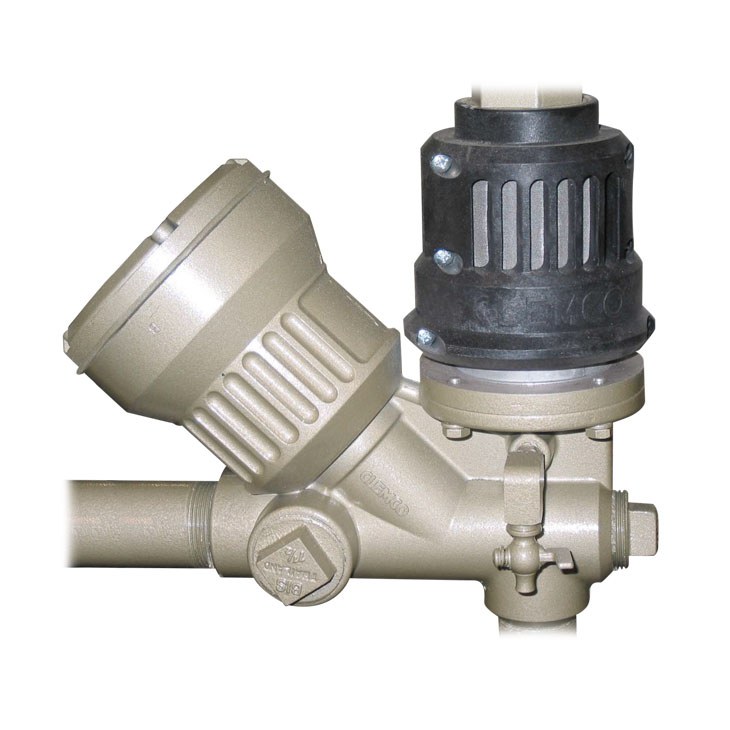

Millennium Inlet Outlet Valve
The Millennium Inlet Outlet Valve is a two-part remote control valve that integrates both inlet and outlet functions. It features an integral exhaust muffler, enhancing its operational efficiency by managing exhaust noise effectively. This valve is designed for applications requiring precise control of fluid flow, combining multiple functions into a single unit.
The valve includes various components such as a plunger with a urethane tip, a compression spring, and an exhaust housing. It also comes with a comprehensive service kit that includes inlet, outlet, plunger, and muffler kits, ensuring ease of maintenance and extended service life.
Features
- The Millennium inlet outlet valve is a two part remote control valve that combines inlet and outlet functions and includes and intergral exhaust muffler
| Specification | Details |
|---|---|
| Millenium Inlet Outlet Valve Data Sheet (pdf) 303 KB | Download |
| Specification | Details |
|---|---|
| 0403-21336 | Millennium Inlet/Outlet Valve, Complete |
| 0405-22600 | Plunger, Urethane Tip |
| 0405-22604 | Spring, Compression |
| 0405-22650 | Screw with Internal Thread for Puller |
| 0405-22603 | Upper Sleeve |
| 0405-22611 | 5/16-NC x 1.25 Socket Head Screw, 6 required |
| 0405-21338 | Inlet Valve Body |
| 0405-21339 | Cylinder Cap |
| 0405-01993 | 1/4″ Petcock |
| 0405-01945 | 1/8″ NPT Adaptor with 1/16″ Orifice |
| 0405-02010 | Brass Bushing, 1/4″ x 1/8″ |
| 0405-02494 | 1/4″ NPS Adaptor |
| 0405-22613 | Piston |
| 0405-21346 | Exhaust Housing, 2 required |
| 0405-21345 | Exhaust Valve Body |
| 0405-22612 | Inner Sleeve |
| 0405-22899 | Millennium Super Service Kit (includes Inlet, Outlet, Plunger and Muffler Kits) |
| 0405-22856 | Inlet Segment Seals |
| 0405-22857 | Outlet Segment |
| 0405-22868 | Outlet Muffler |
| 0405-22898 | Plunger Tip |
