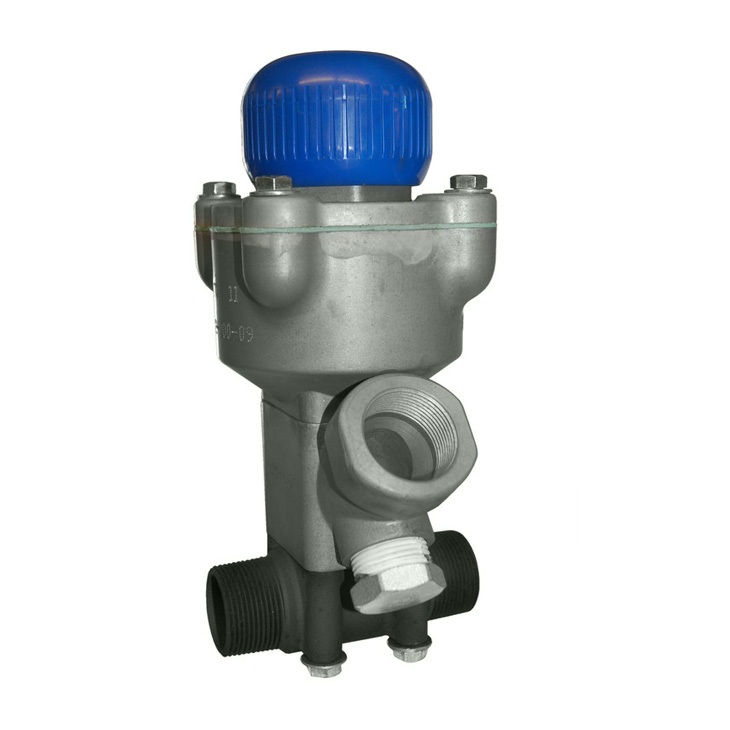

Thompson II Valve
The Thompson II Valve is the next-generation valve in the Thompson Valve line, designed to enhance performance and ease of servicing while extending service life. It effectively shuts off abrasive flow to the nozzle and seals the tank simultaneously, making it ideal for multiple outlet use. This valve offers faster response and finer control compared to its predecessor, with more sleeve choices available to accommodate a wider range of abrasives and applications.
The Thompson II Valve is recognized as the abrasive airblast industry's choice for abrasive metering and control. It includes components such as a Tungsten Carbide Sleeve, O-Rings, Piston Seal, and a Tungsten Carbide Plunger, which contribute to its durability and efficiency. The valve is available in different sizes, including 1-1/4" and 1-1/2", and comes with comprehensive repair kits to ensure continued optimal performance.
Features
- The next-generation valve in the Thompson Valve line
- Shuts off abrasive flow to the nozzle and seals the tank at the same instant
- Ideal for multiple outlet use
- Offers significant improvements over the original Thompson Valve designed to improve performance, make servicing easier and extend service life
- Faster response, finer control
- More sleeve choices available to accommodate a wider range of abrasives and applications
- The abrasive airblast industry's choice for abrasive metering and control
| Specification | Details |
|---|---|
| 0302-2007 | Thompson Valve II 1-1/4″ complete with Tungsten Carbide Sleeve |
| 0302-2008 | Thompson Valve II 1-1/2″ complete with Tungsten Carbide Sleeve |
| 0305-5201 | Knob |
| 0305-5212 | Spring Retainer |
| 0305-5218 | O-Ring |
| 0302-0302 | Washer |
| 0305-5216 | Cap Gasket |
| 0305-5225 | Vibration Disc |
| 0305-5203 | Spring |
| 0305-4904 | Piston Seal |
| 0305-5205 | Piston |
| 0305-5207 | Tungsten Carbide Plunger |
| 0305-5209 | Cylinder |
| 0305-4956 | Plunger Seal (Polythene) |
| 0305-5206 | Plunger Seal (Urethane) |
| 0305-5214 | Body |
| 0305-52113 | Urethane Sleeve |
| 0305-5211 | Base 1-1/2″ |
| 0305-5215 | Base 1-1/4″ |
| 0302-0795 | Hex Bolt 3/8″ x 4-3/8″ |
| 0305-4506 | Plug |
| 0305-5221 | O-Ring |
| 0305-5213 | Tungsten Sleeve |
| 0305-5210 | Seat |
| 0305-0099 | Repair Kit, Tungsten includes Tungsten Carbide Sleeve, O-Rings, Piston Seal, Tungsten Carbide Plunger, Plunger Seals, Seat, Cap Gasket |
| 0305-5299 | Repair Kit, Tungsten includes Tungsten Carbide Sleeve, O-Rings, Piston Seal, Tungsten Carbide Plunger, Plunger Seals, Seat, Cap Gasket, Urethane Sleeve |
| 0305-5298 | Seals Kit, Tungsten includes O-Rings, Piston Seal, Plunger Seals, Seat and Cap Gasket |
