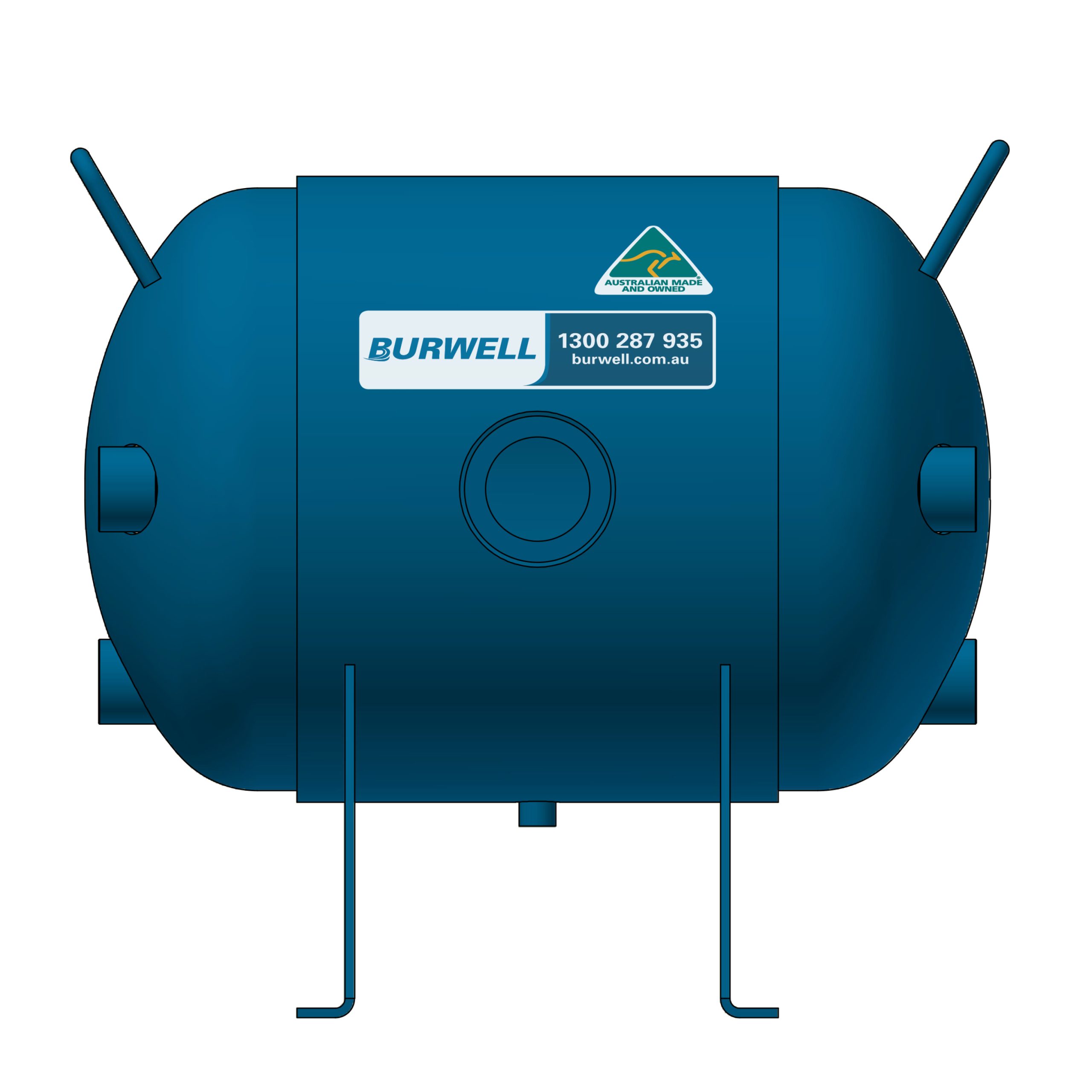

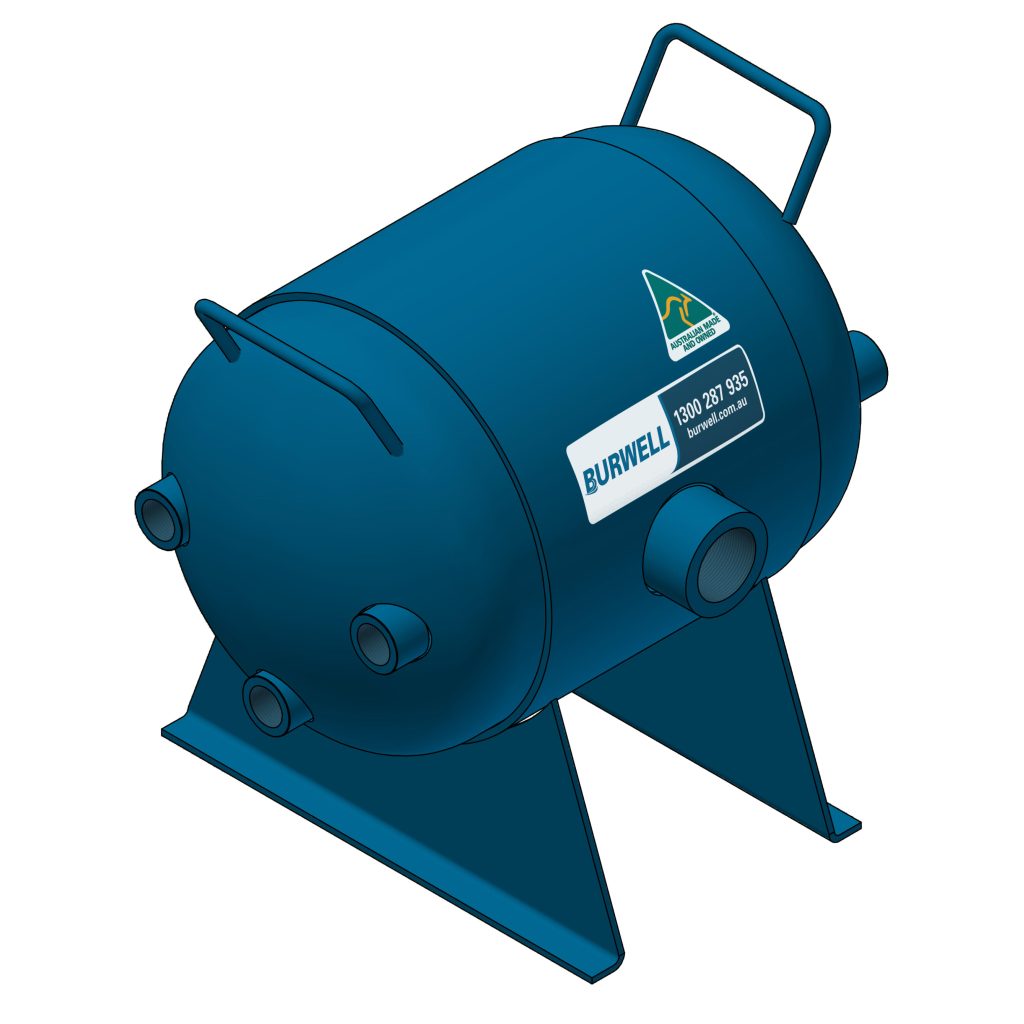

30L Multi Outlet Air Manifold
The 30L Multi Outlet Air Manifold, also known as Burwell's "Air Pig," is designed for applications where multiple tools need to be operated from a single air supply. This product is Australian-made, constructed from Australian Plate Steel, and adheres to AS1210 standards. It is rated to withstand pressures up to 160 psi (1100 kPa), ensuring durability and reliability in various situations.

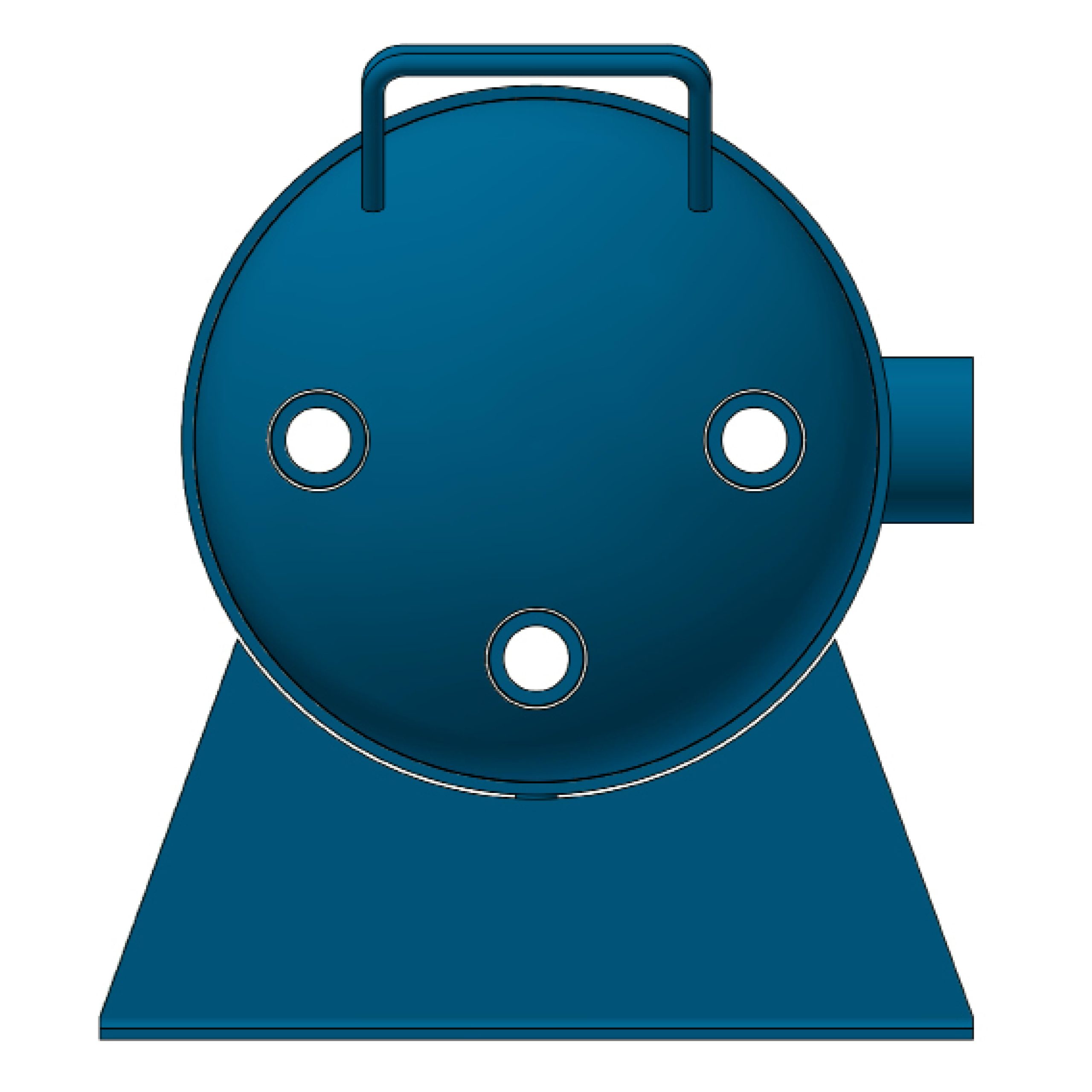

The manifold features one 2-inch inlet port, six 1-inch outlet ports, and a 1/4-inch drain socket. It has a bare weight of 26 kg and dimensions of 480 mm in length, 400 mm in width, and 450 mm in height. The product is unfitted, but various combinations and customizations, including a pressure relief valve, are available to meet customer needs.
Features
- Designed for applications with multiple tools on a single air supply
- Australian made using Australian Plate Steel
- Complies with AS1210 standards
- Pressure rated to 160 psi (1100 kPa)
- 1 x 2" inlet port
- 6 x 1" outlet ports
- 1 x 1/4" drain socket
- Customisable options available, including pressure relief valve
| Specification | Details |
|---|---|
| 1 x 2″ Inlet Ports | |
| 6 x 1″ Outlet Ports | |
| 1 x 1/4″ Drain Socket | |
| Pressure Rated: 160 psi (1100 kPa) | |
| Weight: 26kg (bare) | |
| Length: 480mm | |
| Width: 400mm | |
| Height: 450mm |
| Specification | Details |
|---|---|
| 0501-2303 | Burwell 30L Air Receiver (without fittings) |
| File Name | URL |
|---|---|

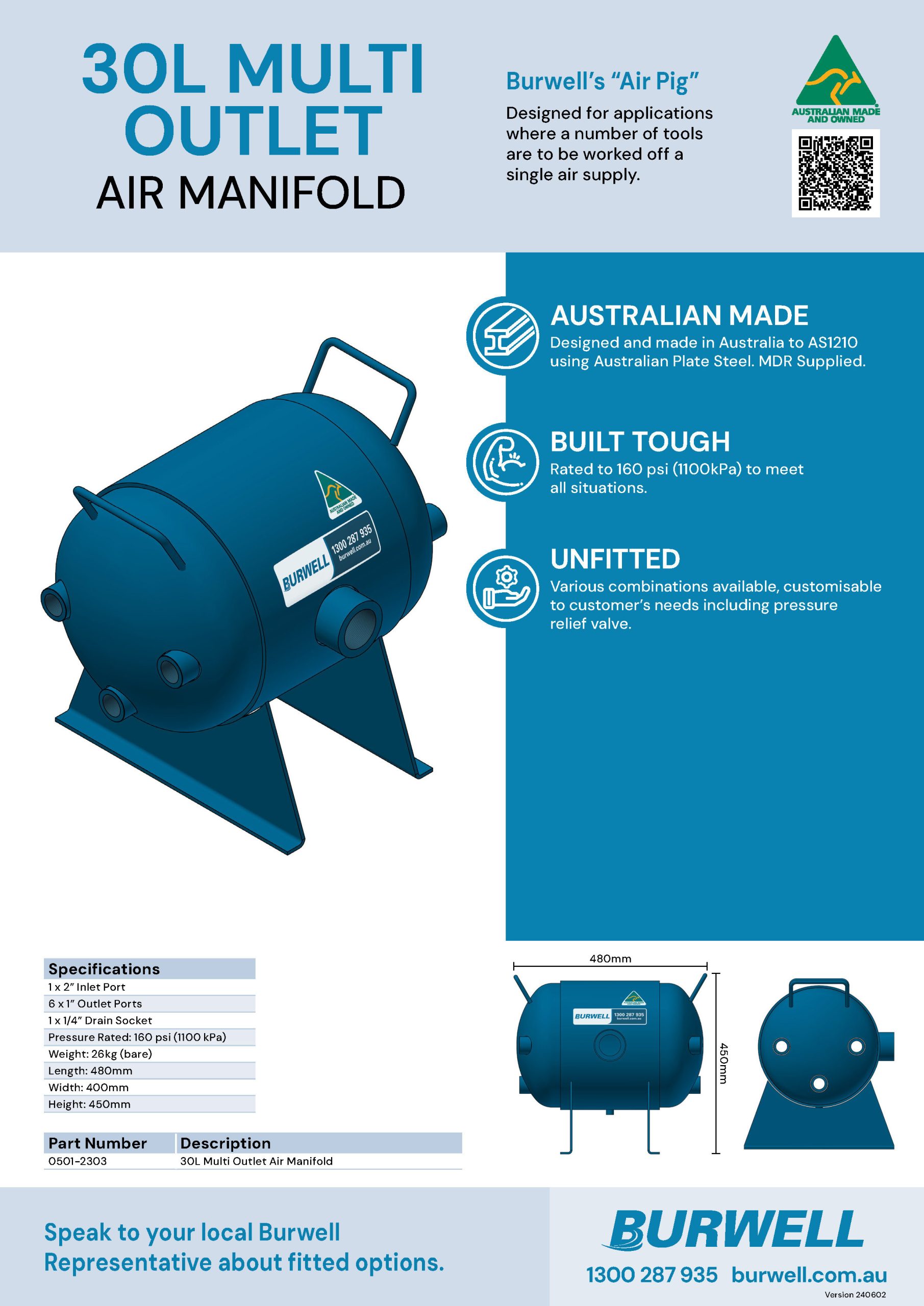

| Air Manifold Flyer 240602 WEB (344 KB) pdf | Download |
