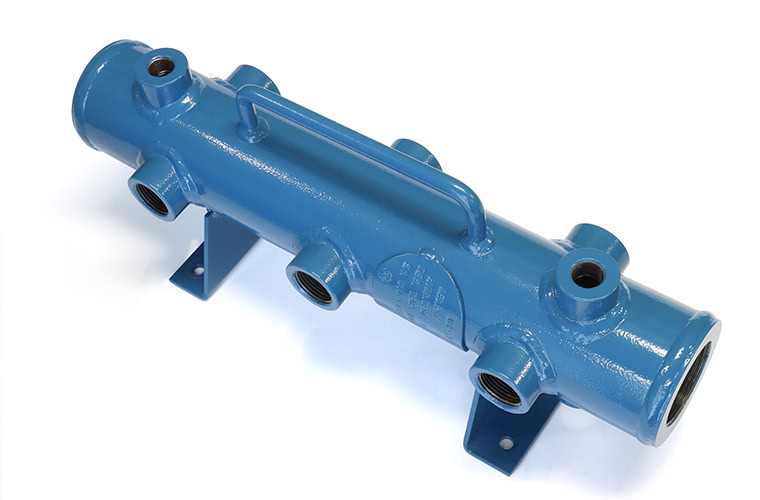

3L Air Manifold Receiver
The Express Tank Compressed Air Manifold from Glenco Air & Power is designed to distribute high flow compressed air to up to seven different pneumatic applications simultaneously. It is available off-the-shelf, powder-coated, and ready for dispatch either as a standalone unit or with a matching accessory kit.
The Express Tank M6-3-16-AS model has a design pressure of 1,600 kPa (232 psi) and a volume of 3 litres. It features 2 x 2 inch BSPT inlet and utility ports, 6 x 1 inch BSPT outlet ports, and 3 x 1/2 inch BSPT gauge, drain, and safety ports. The dimensions are 500 x 140 x 205 mm, and it weighs 10 kg. Optional accessory kits are available for 11 or 14 bar applications.
Features
- Design Pressure: 1,600 kPa (232 psi)
- Volume: 3 litres
- Inlet & Utility Ports: 2 x 2 inch BSPT
- Outlet Ports: 6 x 1 inch BSPT
- Gauge, Drain & Safety: 3 x 1/2 inch BSPT
- Dimensions: 500 x 140 x 205 mm
- Weight: 10 kg
- Optional Extra: 11 or 14 bar Accessory Kit
| Specification | Details |
|---|---|
| Design Pressure | 1,600 kPa (232 psi) |
| Volume | 3 litres |
| Inlet & Utility Ports | 2 x 2 inch BSPT |
| Outlet Ports | 6 x 1 inch BSPT |
| Gauge, Drain & Safety | 3 x 1/2 inch BSPT |
| Dimensions | 500 x 140 x 205 mm |
| Weight | 10 kg |
| Optional Extra | 11 or 14 bar Accessory Kit |
| Specification | Details |
|---|---|
| EU M6-3-16-AS | Express Tank M6-3-16-AS |
| GM EU-M6-3-11-CK | EU-M6-3-11 Accessory Kit 1,100 kPa |
| GM EU-M6-3-14-CK | EU-M6-3-14 Accessory Kit 1,400 kPa |
