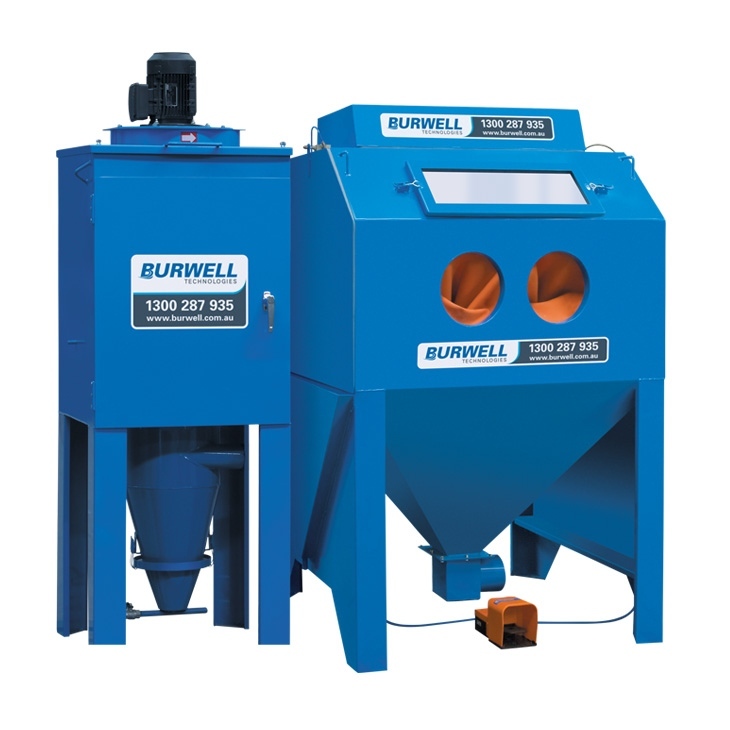

68 Suction Blast
The 68 Suction Blast is designed for high performance blasting efficiency and productivity. It is constructed from 2mm sheet steel with a powder coat finish, featuring a working chamber measuring 880mm by 640mm. The system includes a high volume cyclone grit cleaner and a tungsten carbide blast gun, ensuring effective and durable operation. The unit is foot pedal operated and linked to a safety door switch for enhanced safety during use.
This blast cabinet comes with a 20 bag, 300 cfm dust collector, with an optional upgrade to a Jet pulse cartridge dust collector that includes a 300mm diameter cyclone reclaimer for easier cleaning. Additional features include a right hand side door opening, an internal blow down gun, a moisture separator, an air regulator, and a pressure gauge. The cabinet is powered by a 415 volt, three phase 0.75 kW motor for the dust collector and a 240 volt, single phase for the cabinet light switch.
Features
- For high performance blasting efficiency and productivity
- Manufactured from 2mm sheet steel with powder coat finish
- Working chamber 880mm x 640mm
- High volume cyclone grit cleaner
- Tungsten carbide blast gun
- Foot pedal operated linked to safety door switch
- 20 bag, 300 cfm dust collectorUpgrade 1: Jet pulse cartridge dust collector complete with 300mm diameter cyclone reclaimer (pulse cartridge makes cleaning a little easier)
- Upgrade 1: Jet pulse cartridge dust collector complete with 300mm diameter cyclone reclaimer (pulse cartridge makes cleaning a little easier)
- Right hand side door opening
- Internal blow down gun
- Moisture separator, air regulator and pressure gauge
| Specification | Details |
|---|---|
| Technical Details | Cabinet Work Area: 880mm W x 640mm D x 630mm HCabinet Door Opening: 575mm D x 600mm HDust Collector: 20 bag 300 cfmPower: 415 volt, three phase 0.75 kW motor for dust collectorPower: 240 volt, single phase for cabinet light switchWeight: 385 kgInclusions: Right hand side door openingOptions: Jet pulse cartridge dust collector comes with 300mm diameter cyclone reclaimerOptions: Left hand side door openingOptions: Noise attenuator Shipping Dimensions: 2 x 1200mm W x 1200mm D x 2200mm H |
| Specification | Details |
|---|---|
| 1202-0068 | Cyclone 68 Cabinet includes Cyclone Reclaimer, 20 bag 300 cfm Dust Collector, Fluoro Lighting and Tungsten Suction Blast Gun |
| 1212-0068 | Cyclone 68 Cabinet with Jet Pulse cartridge dust collector comes with 300mm diameter cyclone reclaimer |
| 1204-2312 | Noise attenuator |
| File Name | URL |
|---|---|
| BLAST CABINET BROCHURE SEPT 2022 (4.5 MB) pdf | Download |
