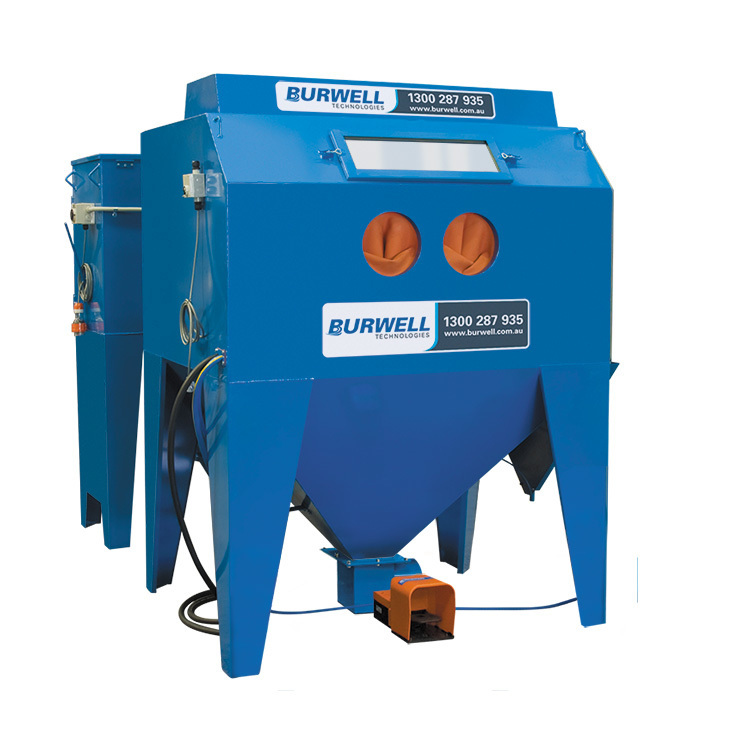

1212 Suction Blast
The 1212 Suction Blast is designed for high performance blasting efficiency and productivity. It features a working chamber measuring 1200mm by 1200mm and is constructed from 2mm steel sheet with a powder coat finish. The system includes a cyclone grit cleaner/reclaimer and a tungsten carbide blast gun, ensuring effective and durable operation.
This blast cabinet is equipped with a 40 bag, 1000 cfm dust collector and offers an upgrade option to a jet pulse cartridge dust collector with a 600mm diameter cyclone reclaimer for easier cleaning. Additional features include a foot pedal operated system linked to a door safety switch, an internal blow down gun, and a moisture separator with an air regulator and pressure gauge. Options such as a trolley, turntable, and tracks are available upon request.
Features
- For high performance blasting efficiency and productivity
- Manufactured from 2mm steel sheet with powder coat finish
- Working chamber 1200mmx 1200mm
- Cyclone grit cleaner/reclaimer
- Tungsten carbide blast gun
- Foot pedal operated linked to door safety switch
- 40 bag, 1000 cfm dust collector
- Right hand side door opening
- Internal blow down gun
- Moisture separator, air regulator and pressure gauge
- Trolley, turntable and tracks available upon request
| Specification | Details |
|---|---|
| Technical Details | Cabinet Work Area: 1200mm W x 1200mm D x 700mm HCabinet Door Opening: 1100mm D x 650mm HDust Collector: 40 bag 1000 cfmPower: 415 volt, three phase 1.5 kW motor for dust collectorPower: 240 volt, single phase for cabinet light switchWeight: 600 kgInclusions: Right hand side door openingOptions: Jet pulse cartridge dust collector complete with 1000mm diameter cyclone reclaimerOptions: Trolley, turntable and tracks (900 mm diameter)Options: Left hand side door openingOptions: Pneumatic lift up door – platform included (if option taken)Shipping Dimensions: 1 x 1800mm W x 1200mm D x 2000mm H and 1 x 1200mm W x 1200mm D x 2200mm H |
| Specification | Details |
|---|---|
| 1202-1212 | Cyclone 1212 Blast Cabinet includes Cyclone Reclaimer, 40 bag 1000 cfm Dust Collector, Fluoro Lighting and Tungsten Suction Blast Gun |
| 1212-1212 | Cyclone 1212 with Jet pulse dust collector complete with 600mm diameter cyclone reclaimer |
| 1204-2330 | Trolley, turntable and tracks (900mm diameter) |
| 1204-2314 | Noise attenuator |
| 1204-2327 | Pneumatic lift up door (platform included if option taken) |
| File Name | URL |
|---|---|
| BLAST CABINET BROCHURE SEPT 2022 (4.5 MB) pdf | Download |
