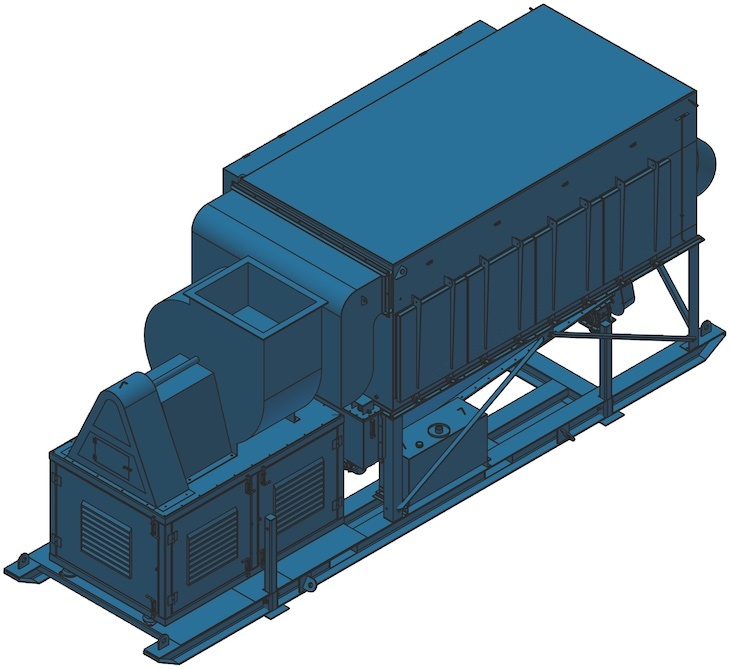

Dustmaster Elite Model
The Dustmaster Elite Model is a mobile dust collector designed for large-scale projects, offering a capacity of 25,000 to 35,000 CFM. This Australian-made unit is constructed using Australian Plate Steel and adheres to AS1210 standards. It features a VSD starter on the electric control board, which reduces power demand and energy consumption while providing accurate airflow. The unit is equipped with a fan rated for high static resistance, allowing for duct runs up to 250 meters.
The Dustmaster Elite Model is available in both electric and diesel versions, with the electric unit designed to minimize operational sound levels. It includes a 415 volts, 3 phase, 50 HZ power requirement for the VSD control panel and a 63 amp plug with a 10-meter lead. The unit also features gold cone cartridge filters, an automated pulse control system, and telescopic legs for hopper discharge. Its compact design includes forklift slots and lifting lugs for safe handling, and it can be equipped with a genset for remote operation.
Features
- Mobile dust collector for large scale projects.
- Capacity: 25,000 - 35,000 CFM.
- Designed and made in Australia to AS1210 standards.
- Electric unit features a VSD starter for power management.
- Diesel unit designed for remote work.
- Forklift slots and lifting lugs for safe handling.
- Compact design with a small footprint for site mobilisation.
- Includes gold cone cartridge filters and automated pulse control system.
| Specification | Details |
|---|---|
| Weight | 9000kg |
| Length | 7880mm |
| Width | 2340mm |
| Height | 3200mm |
| Electrical: 415 volts, 3 phase, 50 HZ power requirement for VSD control panel |
| Plug: 63 amp plug with 10m lead |
| Fan: Rated for high static resistance to allow for duct runs up to 250m |
| Silenced pulse valve enclosure 84 dBA |
| Gold cone cartridge filters |
| Automated pulse control system |
| Telescopic legs for hopper discharge |
| Specification | Details |
|---|---|
| MDC-ELITE-E | Dustmaster Elite Mobile Dust Collector – Electric |
| MDC-ELITE-D | Dustmaster Elite Mobile Dust Collector – Diesel |
| MDC-GEN-ELITE | Genset for electric dust collector (ELITE) 104kva |
| MDC-AUGER-ELITE | Auger 150mm diameter screw with rotary lock |
| File Name | URL |
|---|---|

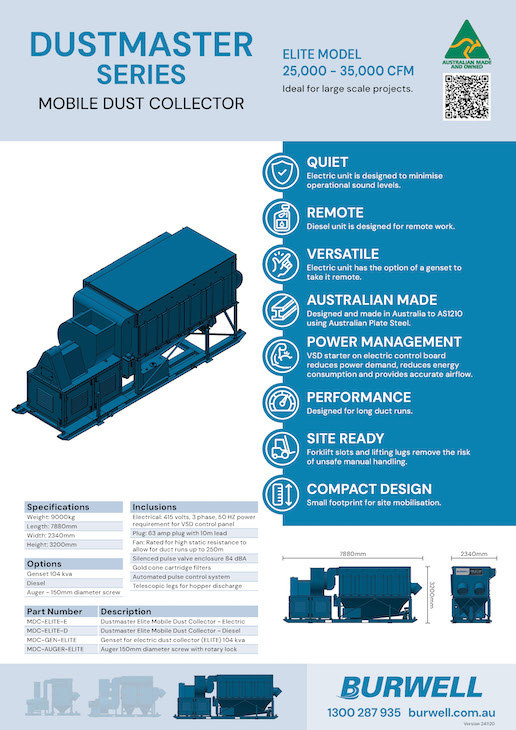

| Dustmaster Elite Flyer 241120 WEB (713 KB) pdf | Download |
