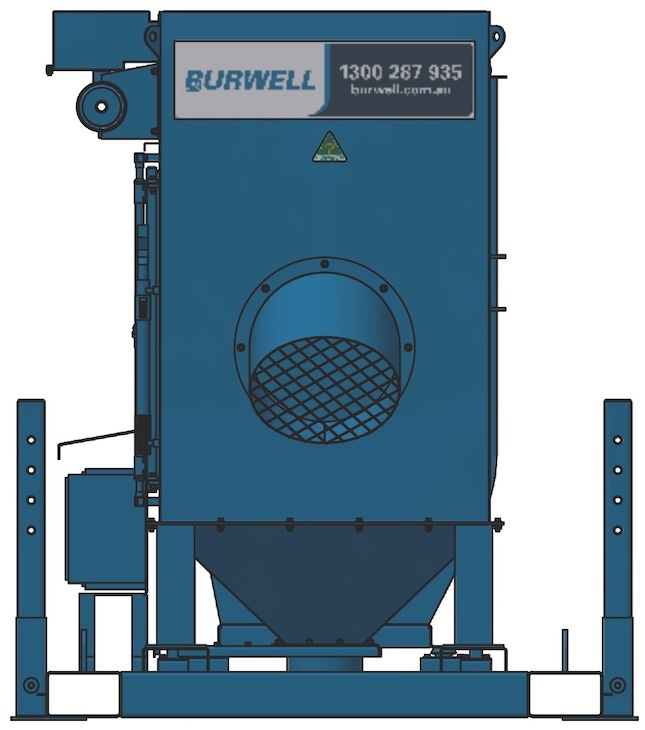

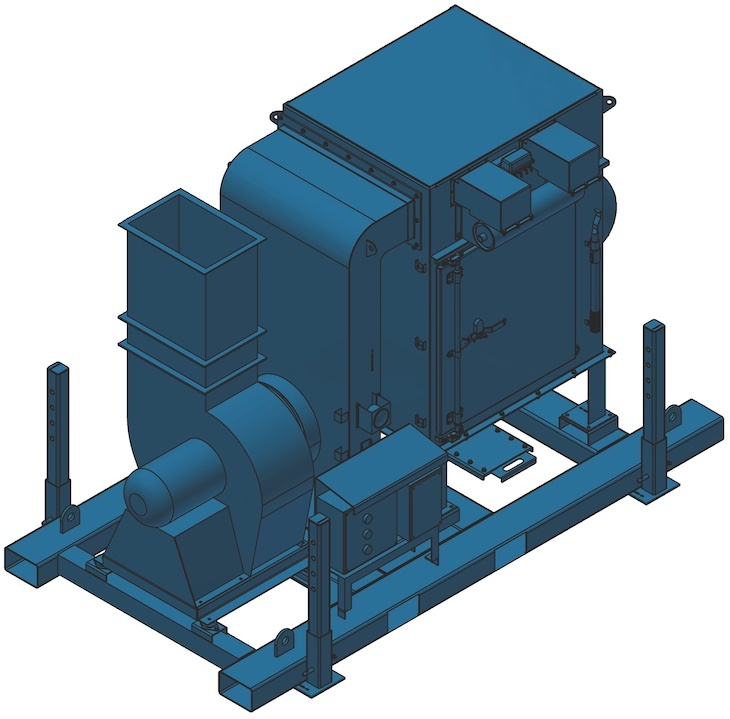

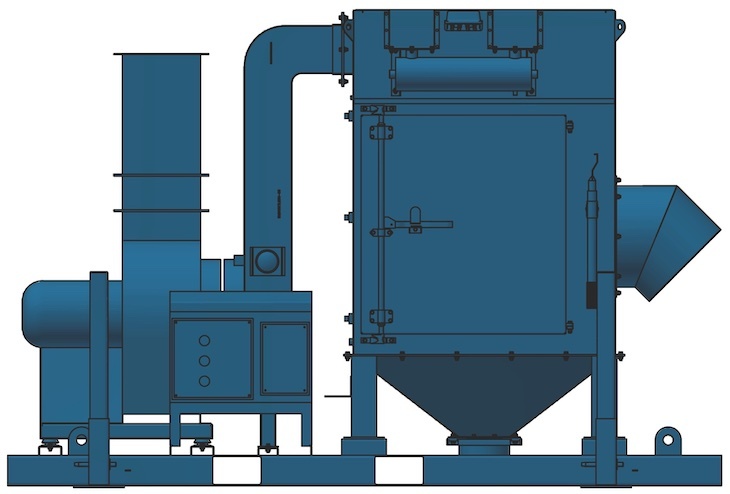

Dustmaster Junior Model
The Dustmaster Junior Model is a mobile dust collector designed for small, mobile projects, offering a capacity of 5,000 to 10,000 CFM. It is available in both electric and diesel versions, with the electric unit specifically engineered to minimize operational sound levels. The unit is Australian-made, constructed to AS1210 standards using Australian Plate Steel, and features a VSD starter on the electric control board to reduce power demand and energy consumption while providing accurate airflow.
This compact dust collector is designed for long duct runs, with a fan rated for high static resistance allowing for duct runs up to 250 meters. It includes features such as forklift slots and lifting lugs for safe handling, gold cone cartridge filters, and an automated pulse control system. The Dustmaster Junior Model also has a small footprint, making it versatile and easy to mobilize on site. Additional specifications include a weight of 2400 kg, dimensions of 3520 mm in length, 2085 mm in width, and 2360 mm in height.
Features
- 5,000 - 10,000 CFM airflow capacity.
- Electric unit designed to minimise operational sound levels.
- Made in Australia using Australian Plate Steel to AS1210.
- VSD starter reduces power demand and energy consumption.
- Designed for long duct runs up to 250m.
- Forklift slots and lifting lugs for safe handling.
- Compact design occupies minimal space on site.
- Diesel unit designed for remote work.
| Specification | Details |
|---|---|
| Weight | 2400kg |
| Length | 3520mm |
| Width | 2085mm |
| Height | 2360mm |
| Electrical: 415 volts, 3 phase, 50 HZ power requirement for VSD control panel |
| Plug: 32 amp plug with 10m lead |
| Fan: Rated for high static resistance to allow for duct runs up to 250m |
| Silenced pulse valve enclosure 84 dBA |
| Gold cone cartridge filters |
| Automated pulse control system |
| Telescopic legs for hopper discharge |
| Specification | Details |
|---|---|
| MDC-JUNIOR-E | Dustmaster Junior Mobile Dust Collector – Electric |
| MDC-JUNIOR-D | Dustmaster Junior Mobile Dust Collector – Diesel |
| MDC-AUGER-JUNIOR | Auger 150mm diameter screw with rotary lock |
| File Name | URL |
|---|---|

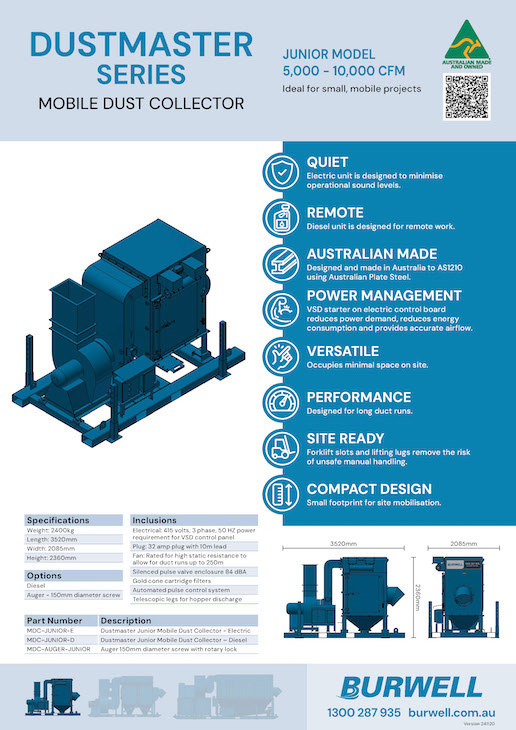

| Dustmaster Junior Flyer 241120 WEB (729 KB) pdf | Download |
