Spilvac - AIR ELEVATOR SKID SYSTEM

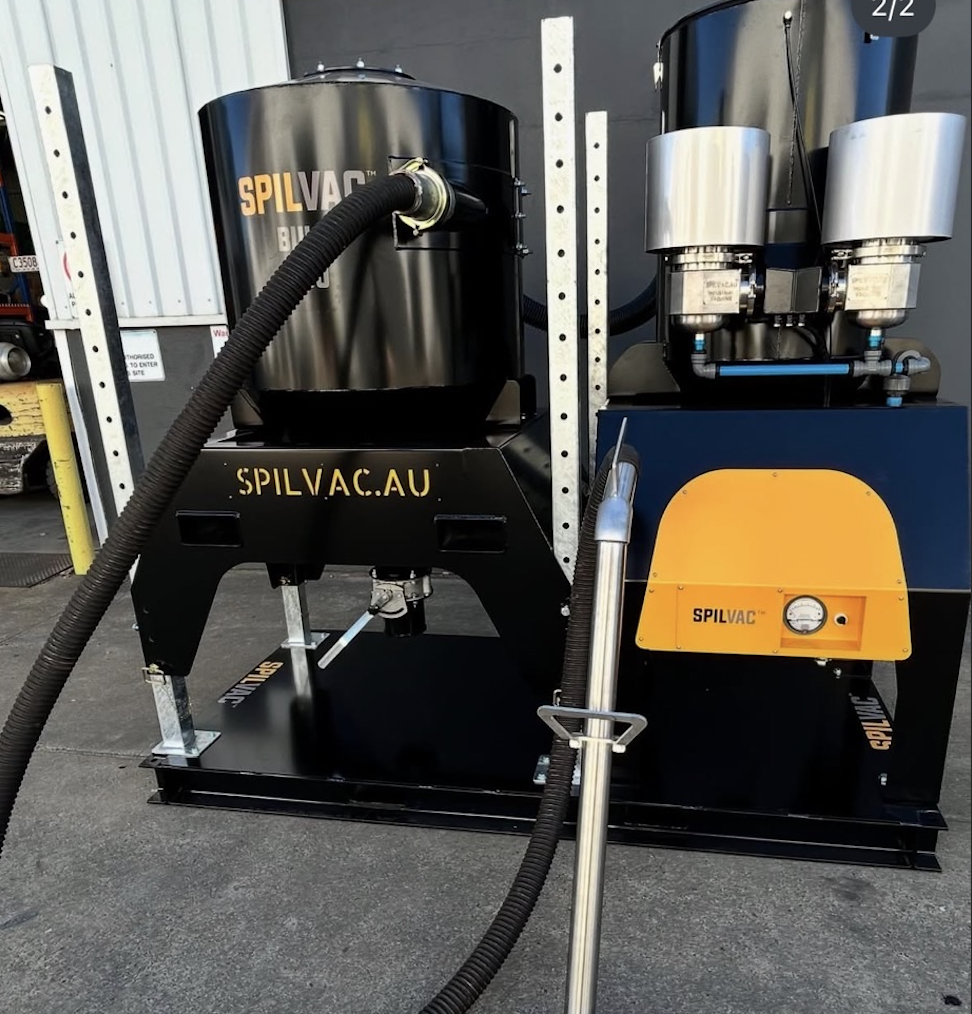

The Spilvac Air Elevator Skid System is a portable vacuum generator with a filter/dust separation hopper connected to a 1-tonne bulk hopper mounted on a skid. It is not requiring significant set up time to be operational, capable of handling both wet and dry products over long distances. The skid has tyne slots for ease of forklift movement and lifting points for crane lifting.
This system is suitable for conveying large volumes of product. It features a high-performance pneumatic system with automated reverse pulse filter cleaning. The system is 100% Australian designed and manufactured, with options for HEPA filters and stainless steel construction.
Features
- Portable vacuum generator with filter/dust separation hopper.
- Handles both wet and dry products.
- Automated reverse pulse filter cleaning system.
- Capable of long-distance vacuuming.
- High-performance pneumatic operation.
- HEPA filter option available.
- 100% Australian designed and manufactured.
- Optional stainless steel construction.
- The skid has tyne slots for ease of forklift movement and lifting points for crane lifting.
| Specification | Details |
|---|---|
| Model | Elevator System 300 |
| Practical Recovery Rate | 1-2 t/hr |
| Maximum Recommended Conveying Distance | 20m |
| Maximum Possible Conveying Distance | 30m |
| Recommended Hose Diameter | 50 or 63 OD |
| Supplied Hose | High abrasive Antistatic |
| Compressed Air Supply Requirements | 100 CFM / 25KW / 144 HP @ 80PSI |
| Compressed Air Connection | Type A 3/4” claw coupling |
| Compressed Air Supply Piping/Hose Diameter Required Minimum | 3/4” (19mm) |
| Air Flow Produced | 300 CFM / 8.5 m3/min |
| Maximum Vacuum | 609 Mbar / -18 InHGg |
| Vacuum Producer | Air powered Venturi Vacuum generators |
| Hopper Capacity | 260 Litres |
| Dust Collector Filter | High Efficiency Filter Cartridge |
| Number of Filter Cartridges | 1 |
| Filter Material | Spun Bond Polyester |
| Filter Cleaning System | Automated Reverse Pulse |
| Machine Capable of Vacuuming Wet Product | YES |
| HEPA Certified Filter | Optional |
| Qty HEPA Filter | 1 |
| Noise Level | 70 DB |
| Length | 1200mm |
| Width | 700mm |
| Height | 2300mm collapsed |
| Weight | 1000KG |
| Method to Move Item | Fork lift Tyne slots or lifting points |
| Outlet for Product | High Abrasive resistant manual butterfly valve |
| Floor Tools/ Aspirator Supplied | Stainless Steel Floor Tool – Included, Stainless Steel Aspirator – Optional |
| Options | Fully Stainless Steel construction – POA |
| File Name | URL |
|---|---|
| SPILVAC AIR ELEVATOR SKID SYSTEM.pdf | Download |
