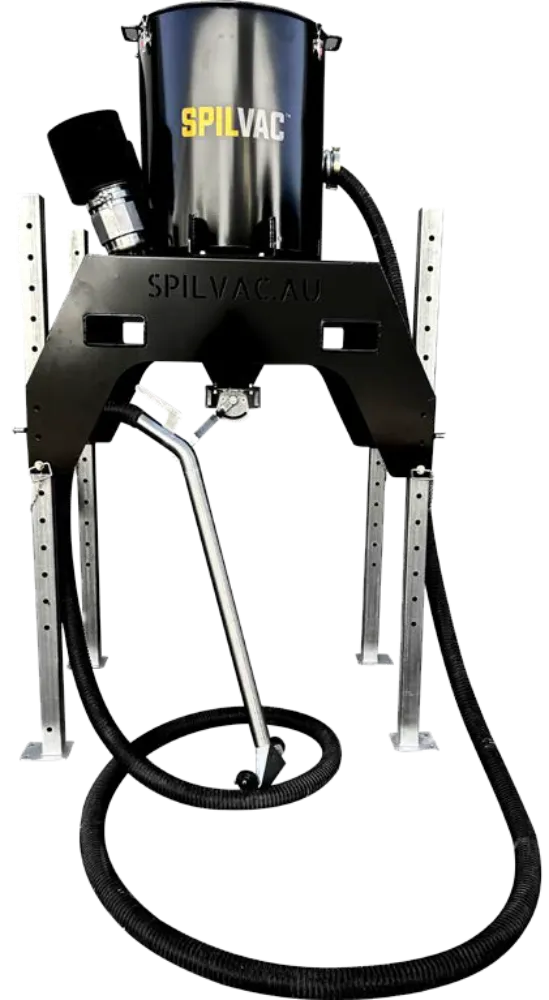

Spilvac Air Elevator
The Air Elevator is a heavy construction powerful vacuum with an adjustable height hopper. It is designed for high performance and is fully pneumatic with automated reverse pulse filter cleaning. This vacuum is capable of handling long length vacuum distances of both wet and dry products, making it suitable for positioning over your blast pot, drum or bulk bag.
The Air Elevator features a HEPA filter option and is 100% Australian designed and manufactured. The unit can be used as a standalone vacuum or paired with bulk hoppers to increase bulk storage capacity.
Features
- Fully 100% pneumatic operation
- Automatic reverse pulse filter cleaning
- Adjustable height hopper
- Capable of conveying wet and dry products
- Supplied with 20m hose and high wear floor tool
- HEPA filter option available
- Designed and manufactured in Australia
- Can be paired with bulk hoppers for increased storage
| Specification | Details |
|---|---|
| Practical Recovery Rate | 1-2 t/hr |
| Maximum Recommended Conveying Distance | 20m |
| Maximum Possible Conveying Distance | 30m |
| Compressed Air Supply Requirements | 100 CFM / 25KW / 144 HP @ 80PSI |
| Noise Level | 70 DB |
| Hopper Capacity | 260 Litres |
| Filter Cleaning System | Automated Reverse Pulse |
| HEPA Certified Filter | Optional |
| Weight | 225 KG |
| Maximum Vacuum | 609 Mbar / -18 InHGg |
| Air Flow Produced | 300 CFM / 8.5 m3/min |
| Vacuum Producer | Air powered Venturi Vacuum generators |
| Filter Material | Spun Bond Polyester |
| Outlet for Product | High Abrasive resistant manual butterfly valve |
| Floor Tools/Aspirator Supplied | Stainless Steel Floor Tool – Included / Stainless Steel Aspirator – Optional |
| Options | Fully Stainless Steel construction – POA |
| Length/Width/Height | 1500mm / 1100mm / 1900-3000mm elevated / 1540mm |
| Recommended Hose Diameter | 50 or 63 ID |
| Supplied Hose | High abrasive Antistatic or PVC for wet use only |
| Compressed Air Connection | 3/4″ Type A claw coupling |
| Compressed Air Piping Diameter | 3/4″ (19mm) |
| Number of Filter Cartridges | 1 |
| Qty HEPA Filter | 1 |
| File Name | URL |
|---|---|
| AIR ELEVATOR.pdf | Download |
