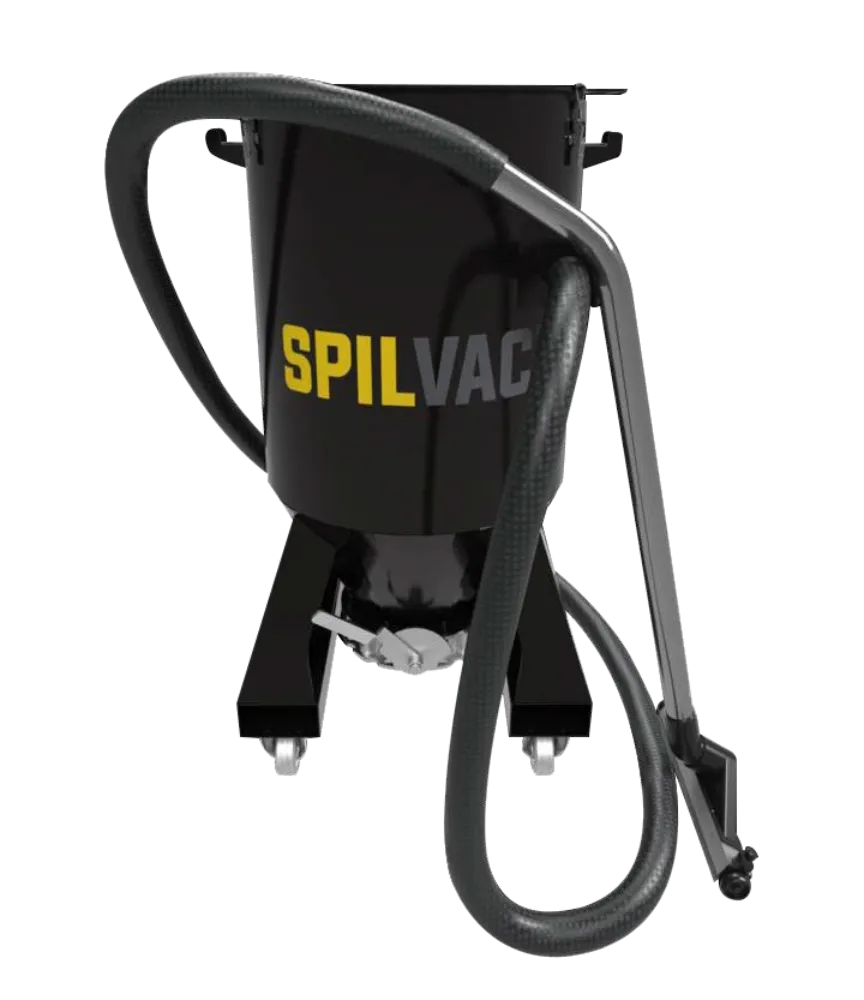

Spilvac Air Shop Vac
The Air Shop Vac is a general purpose vacuum system designed to handle both wet and dry waste. It is ideal for shop clean-up tasks, featuring a collection hopper on wheels for easy portability. The system includes a butterfly valve at the base and fork tyne slots for elevating the hopper over suitable receptacles, addressing manual handling challenges.
This fully pneumatic vacuum system is quiet and powerful, with optional HEPA filter capabilities. It is 100% Australian designed and manufactured, built to last, and suitable for light industrial applications. The Air Shop Vac is compatible with standard floor tools and comes with a hose for versatile use.
Features
- Fully 100% pneumatic
- Manual reverse pulse filter cleaning
- Comes with hose and standard floor tool
- Wet and dry
- Easy to handle high strength hopper with forktyne slots
- Large 250 diameter butterfly valve to aid emptying
| Specification | Details |
|---|---|
| Model | Air Drum Vac 180 |
| Practical Recovery Rate | 1 t/hr |
| Maximum Recommended Conveying Distance | 5 m – the shorter distance the better performance |
| Maximum Possible Conveying Distance | 10 m |
| Recommended Hose Diameter | 50 mm ID |
| Supplied Hose | 4 m High abrasive Antistatic or PVC for wet use only |
| Compressed Air Supply Requirements | 60 CFM @ 80 PSI |
| Compressed Air Connection | Standard Nitto Fitting 3/4″ Type A claw coupling |
| Compressed Air Supply Piping/Hose Diameter Required Minimum | 10 mm ID |
| Air Flow Produced | 180 CFM / 5 m3/min |
| Maximum Vacuum | 609 Mbar / -18 InHGg |
| Vacuum Producer | Air powered Venturi Vacuum generators |
| Hopper Capacity | 100 Litres |
| Dust Collector Filter | High Efficiency Filter Cartridge |
| Number of Filter Cartridges | 1 |
| Filter Material | Spun Bond Polyester |
| Filter Cleaning System | Manual Reverse Pulse |
| Machine Capable of Vacuuming Wet Product | Yes |
| HEPA Certified Filter | Optional – POA |
| Qty HEPA Filter | 1 |
| Noise Level | 60 dB |
| Dimensions | Length: 600 mm, Width: 1000 mm, Height: 1300 mm |
| Weight | 80 kg |
| Method to Move Item | Fork lift Tyne slots & 500 KG rated wheels |
| Outlet for Product | High Abrasive resistant manual butterfly valve |
| Floor Tools/Aspirator Supplied | Floor Tool – Included |
| Options | Fully Stainless Steel construction – POA |
| File Name | URL |
|---|---|
| AIR SHOP VAC.pdf | Download |
