30L Multi Outlet Air Manifold
Burwell's "Air Pig" - designed for applications where a number of tools are to be worked off a single air supply.
AUSTRALIAN MADE
Designed and made in Australia to AS1210 using Australian Plate Steel. MDR Supplied.
BUILT TOUGH
Rated to 160ps (1100kPa) to meet all situations.
UNFITTED
Rated to 160ps (1100kPa) to meet all situations.
UNFITTED
Various combinations available, customisable to customer's needs including pressure relief valve.
*SPEAK TO YOUR LOCAL BURWELL REPRESENTATIVE ABOUT FITTED OPTIONS
-
Ordering Details
Part # Description 0501-2303 Burwell 30L Air Receiver (without fittings) -
Technical Details
Specifications 1 x 2" Inlet Ports 6 x 1" Outlet Ports 1 x 1/4" Drain Socket Pressure Rated: 160 psi (1100 kPa) Weight: 26kg (bare) Length: 480mm Width: 400mm Height: 450mm -
Downloads

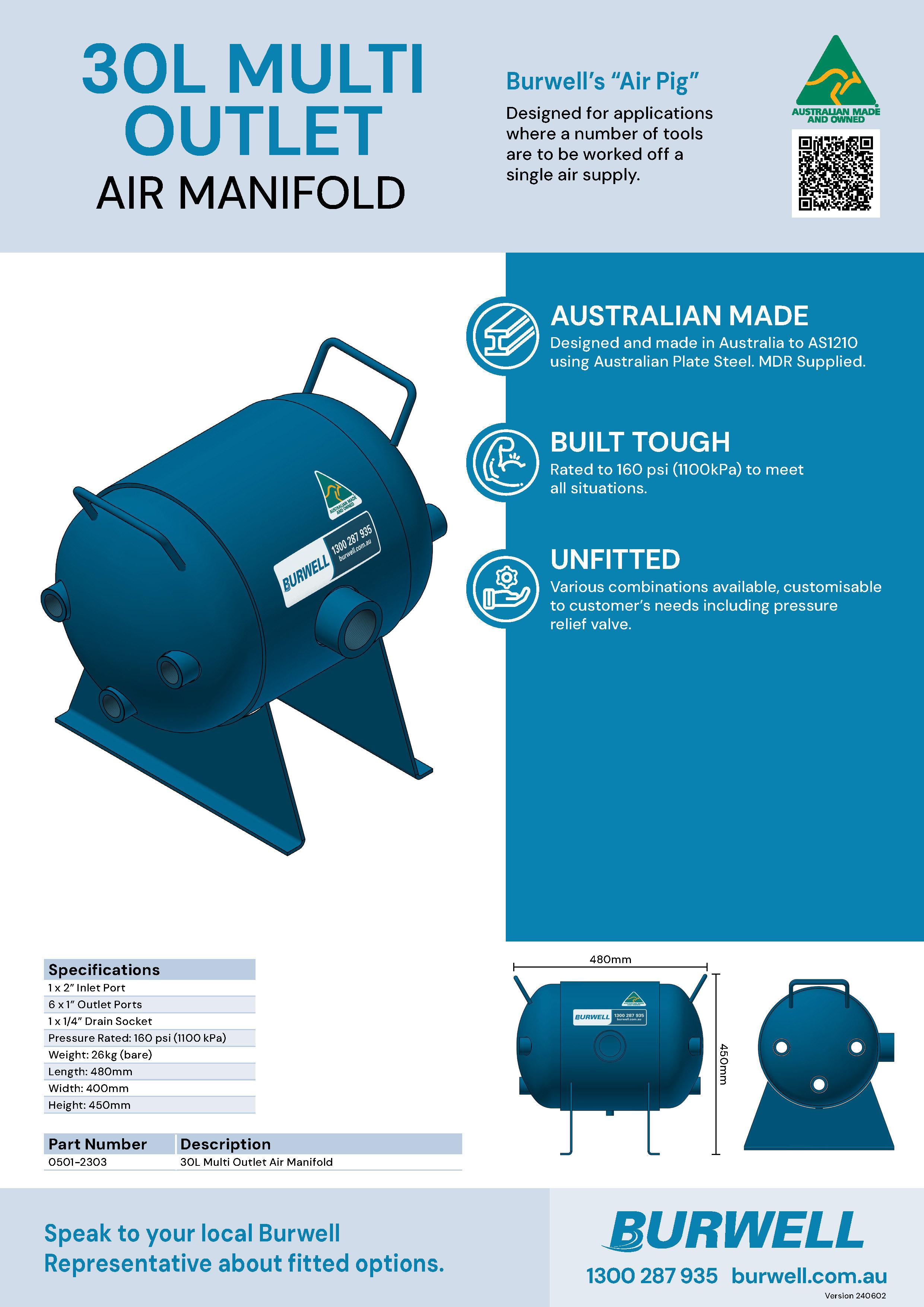

- Air Manifold Flyer 240602 WEB (344 KB) pdf
